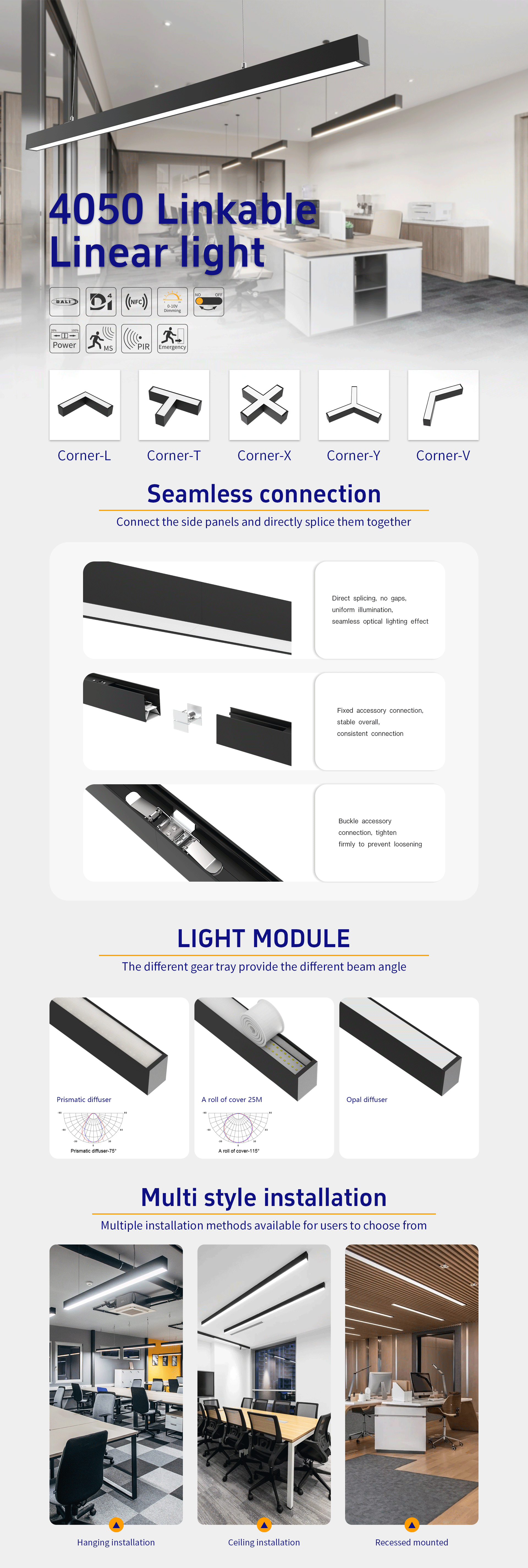

4050 Linkable Linear Light
4050 Linkable Linear Light
- Power: 20W/30W or 40W/60W or 60W/80W or 80W/100W or 100W/120W
- Luminous Flux: 2600LM or 5200LM or 7800LM or 10400LM or 13000LM
- Colour Temperature: 2700K/3000K/4000K/5000K/6500K
- IP Rating: IP20
- Dimensions: 600*40*50MM or 1200*40*50MM or 1500*40*50MM or 1800*40*50MM or 2400*40*50MM
- Warranty: 5 years warranty
Classify:
Key words:
Product Detail
| Input Voltage AC | 180-264V |
| Power Factor | >0.95 |
| Luminaire Efficacy | 100LM/W or 130LM/W or 150LM/W |
| LED Type | SMD 2835 |
| Total Circuit Power (W) | 120W |
Max linkable | Internal 3*1.5mm²cords, Max linkable length 60M or Power<2400W |
| Installation | Hanging&Ceiling&Embedded |
| Sensor | n/a |
| Colour Rendering | >80 CRI |
| Different diffusers | Prismatic diffuser Opal diffuser A roll of cover 25M |
| Multiple splicing angles | Corner-L 、T 、＋ 、Y 、V |
| Lamp Viewing Angle | Prismatic diffuser-75° A roll of cover-115° |
| Dimmable | yes |
| Operating Temp. | -20°C to +45°C |
| Lifespan L80 | 50,000 Hours |
| Housing Material | Aluminium |
| Housing Colour | Black |
| Driver | Lifud/Boke driver |
| other function | 4 CCT Adjust 3 Power Adjust 0-10V Dimming DALI、D4i 、NFC MS、PIR Sensor、Emergency |
